April 2022
CounterStrike CSST Piping Systems
The flexibility and long lengths of CounterStrike CSST make it perfect for remodel/repair work. It can be pulled like wire, which minimizes the need to remove and replace walls, while at the same time potentially reducing both construction cost and shortening lead times.
Features and Benefits:
Seismic and Corrosion Resistance
Fewer Fittings and Faster Installation
No Additional Bonding Requirements
Robust Single Jacket Design
Non-annealed – making it crush resistant
Long standard lengths up to 500 feet
Longer custom lengths available to reduce waste
Sizes 3/8” to 2”
Did you know you need to be certified before purchasing TracPipe CounterStrike? Join us on April 19th at 8 am for our training and certification class at our Chantilly office. Click here to register!

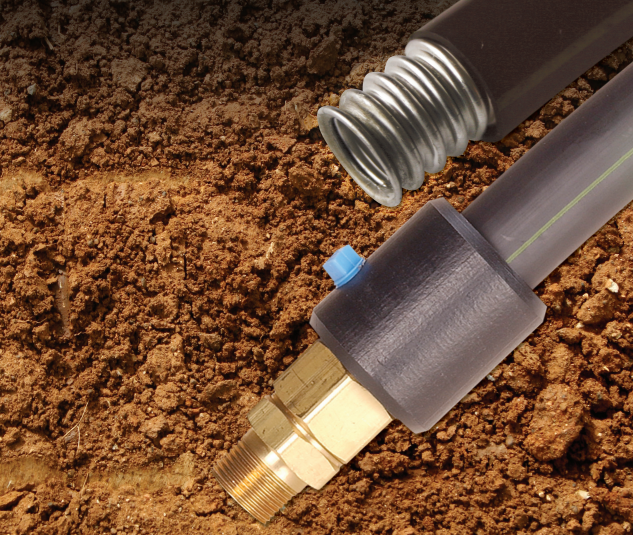

PS-II Underground CSST System
A pre-sleeved, “one-step” gas installation system for underground, rooftop, or exterior wall applications. The PS-II can be installed under buildings, slabs, roads, driveways – it’s perfect for gas installations in a variety of applications, where speed, reliability, and safety are paramount.
Features and Benefits:
Pre-sleeved with a flexible black jacket and yellow layline for underground applications
Coated in a polyethylene sleeve that acts as a vented containment system for added
Installs in a fraction of the time of other underground piping materials
Extremely resistant to damage
Eliminates the need for risers and tracer wire
Supplied in standard lengths on reels or custom cut lengths
AutoSnap Fittings
AutoSnap fittings are the only CSST fittings that do not require any disassembly or reassembly of the fitting to the CounterStrike CSST. This greatly reduces installation difficulty and time as there are no small loose gaskets, o-rings, or retainer rings to contend with in a dark, cold work environment.
Three easy steps for lightning-fast connections:
Twist: twist nut one to one and a half counterclockwise turns
Snap: Snap the CounterStrike tubing into the back end of the fitting
Tighten: Tighten the AutoSnap fitting to the specified torque value
DONE!
Features and Benefits:
7 sizes available from 3/8” to 2”
CSA listed
Reduced torque value and reusability
Specifier 2 Application
Quickly and easily design and size systems using TracPipe flexible gas piping with Specifier 2. This free downloadable program allows you to create custom systems to save for later, print as diagrams, or generate a bill of materials.
Features and Benefits:
Virtual piece of paper to pan and zoom the paper in the drawing window, fit to scale for printing
Unlimited undo/redo stack of all changes to a design
Specify initial system parameters (supply pressure and pressure drop), which creates a gas source
Design natural gas and propane gas systems for low, medium, and elevated pressure systems
Extensive drawing flexibility. Freely move objects, scale appliances, rotate fittings, and reconnect pipes
Join us April 6th for the Specifier 2 Training: Click here to register
